Time-Sert Thread Repair
Time-Sert is a solid bushing type thread insert for repair and OEM. It is installed into an oversized hole. The insert is locked in by expanding the bottom threads of the insert into the parent material.

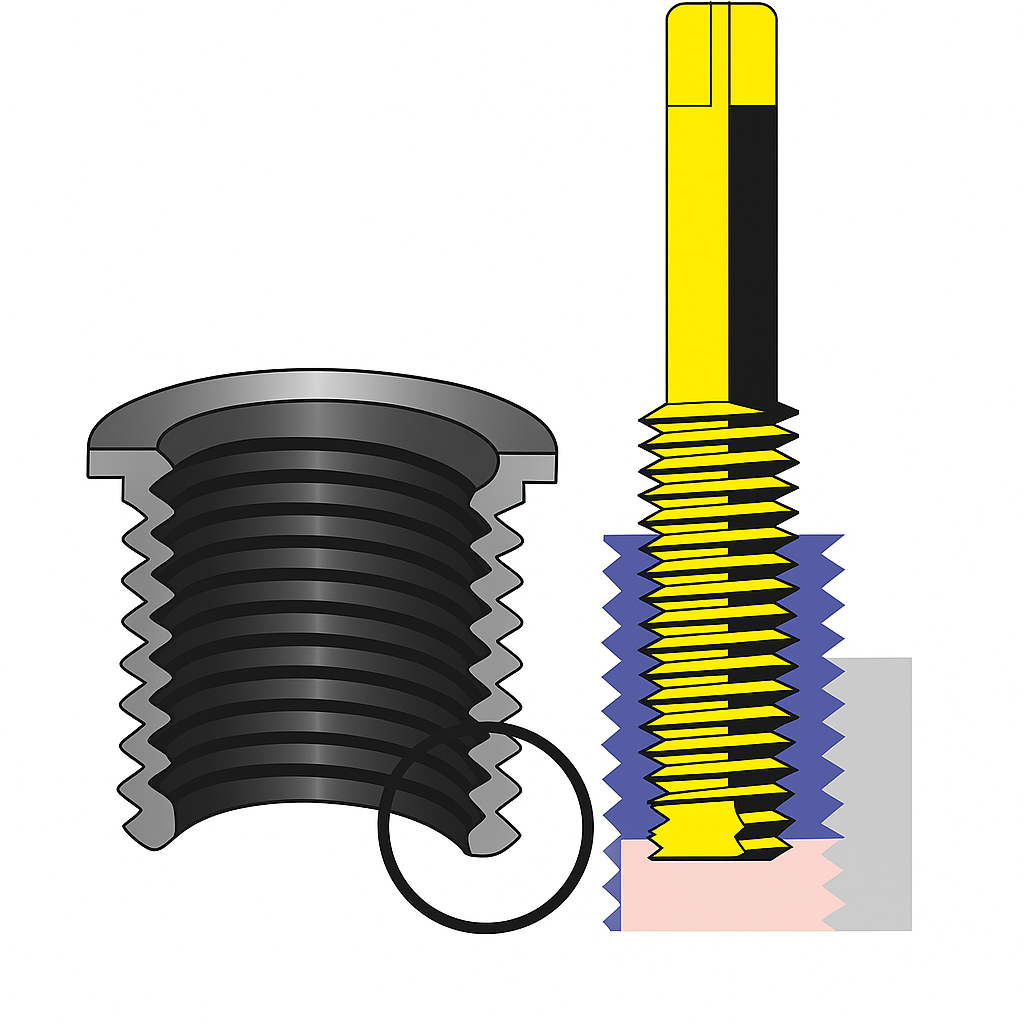

Why Time-Sert is different
The bottom few internal threads of a Time-Sert are not cut to full depth.
During installation, the driver tool acts as a roll-forming tap.
It swages the parent material into those shallow threads and locks the insert in place.
Result: a solid-bodied insert that won't unwind and delivers OEM-grade thread strength.
Installation processes
Time-Sert installation process
Sparkplug thread repair process
Big-Sert installation process
Why Choose Time-Sert?
Superior Strength
Solid bushing construction provides exceptional holding power and reliability.
Precise Fit
Restores threads to original specifications with perfect dimensional accuracy.
Easy Installation
Simple installation process using standard drilling and tapping techniques.
Permanent Solution
Long-lasting repair that often exceeds the strength of original threads.
Time-Sert Applications
Automotive Applications
- • Spark plug thread repair
- • Oil drain plug threads
- • Cylinder head repairs
- • Engine block thread restoration
- • Transmission case repairs
Industrial Applications
- • Machinery thread repair
- • Equipment maintenance
- • Aerospace applications
- • Marine engine repairs
- • Heavy equipment restoration
Technical Specifications
Material Properties
- • High-strength steel construction
- • Corrosion-resistant finish
- • Superior tensile strength
Size Range
- • Metric: M5 to M20
- • Imperial: 1/4" to 3/4"
- • Fine and coarse threads
- • Custom sizes available
Ready to Get Started?
Contact our technical team for sizing guidance and product recommendations for your specific Time-Sert application.
